Conditions Database

Belle II CDB service

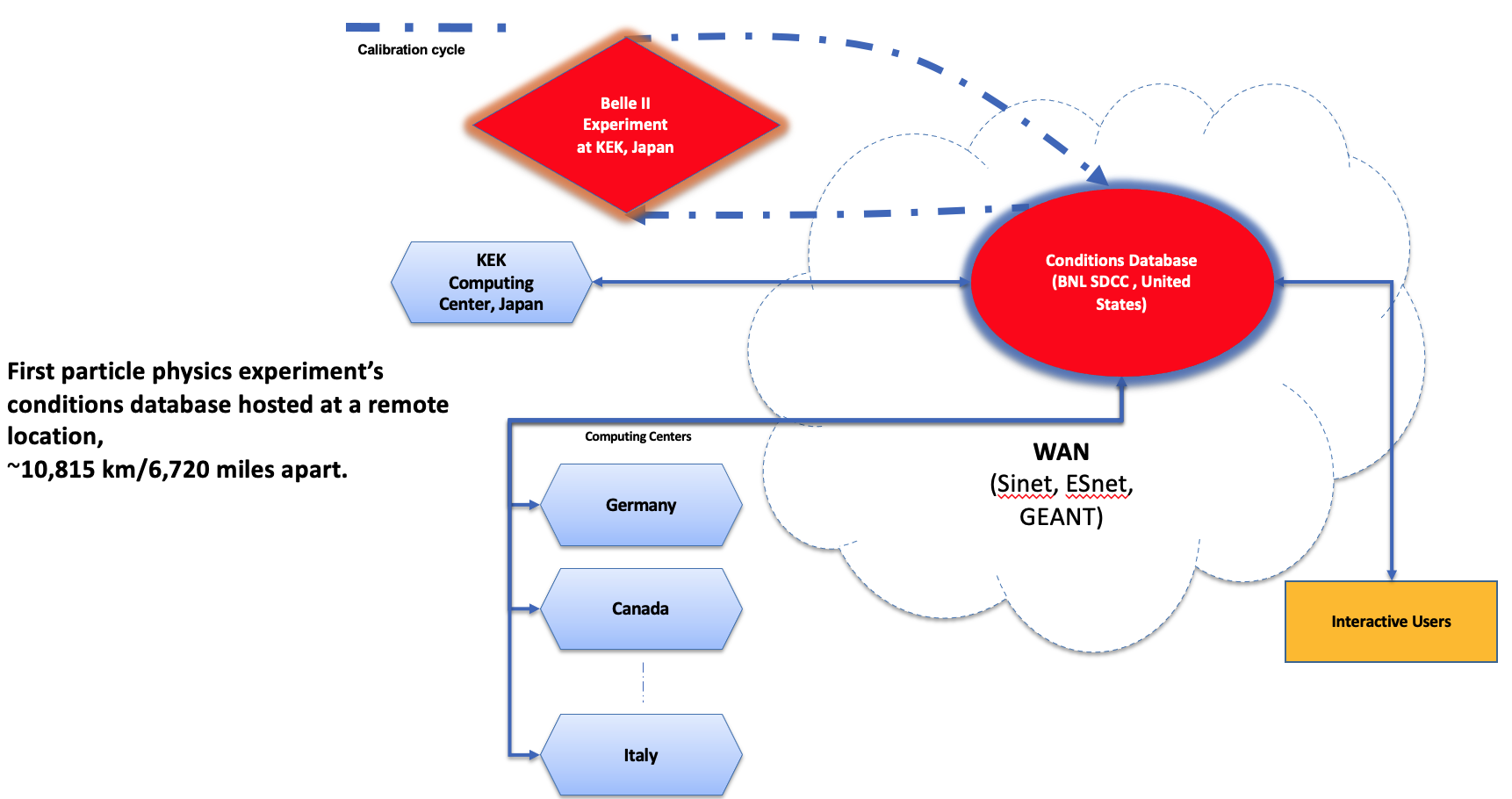

Belle II Conditions Database accessibility overview

B2 CDB general service accessibility

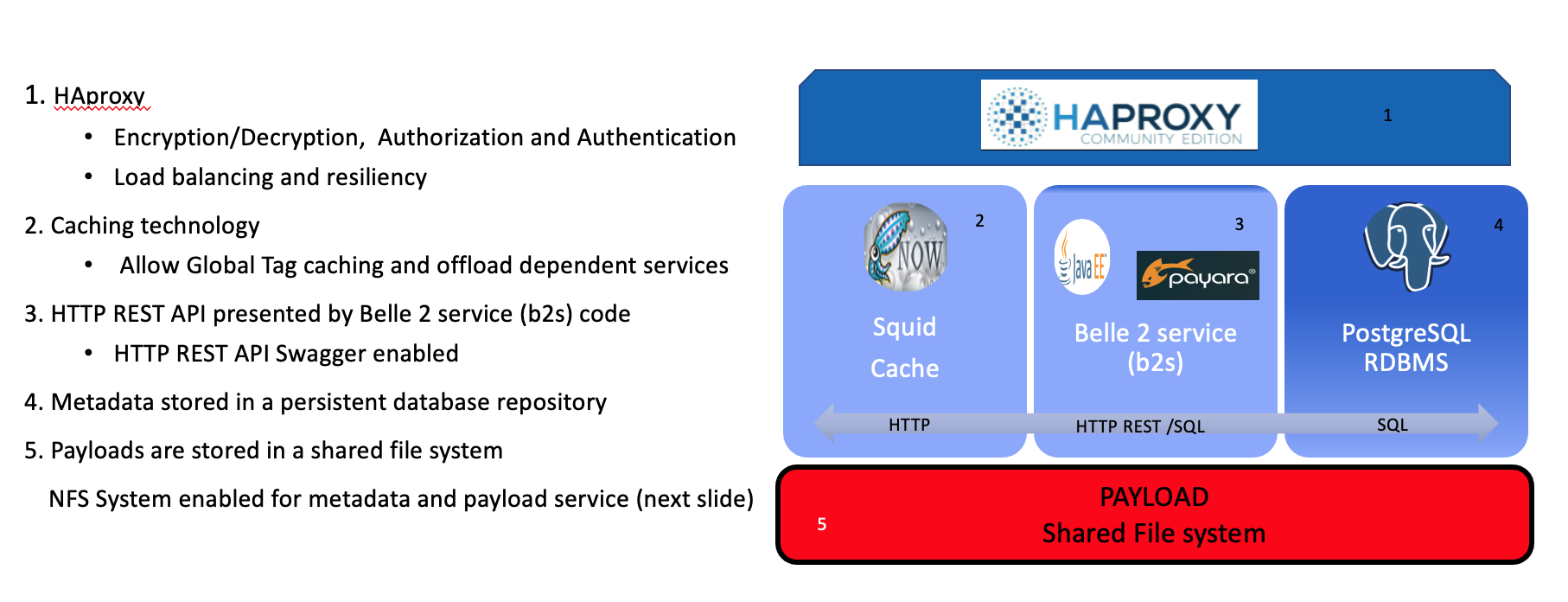

Belle II CDB general service architecture

B2 CDB general services

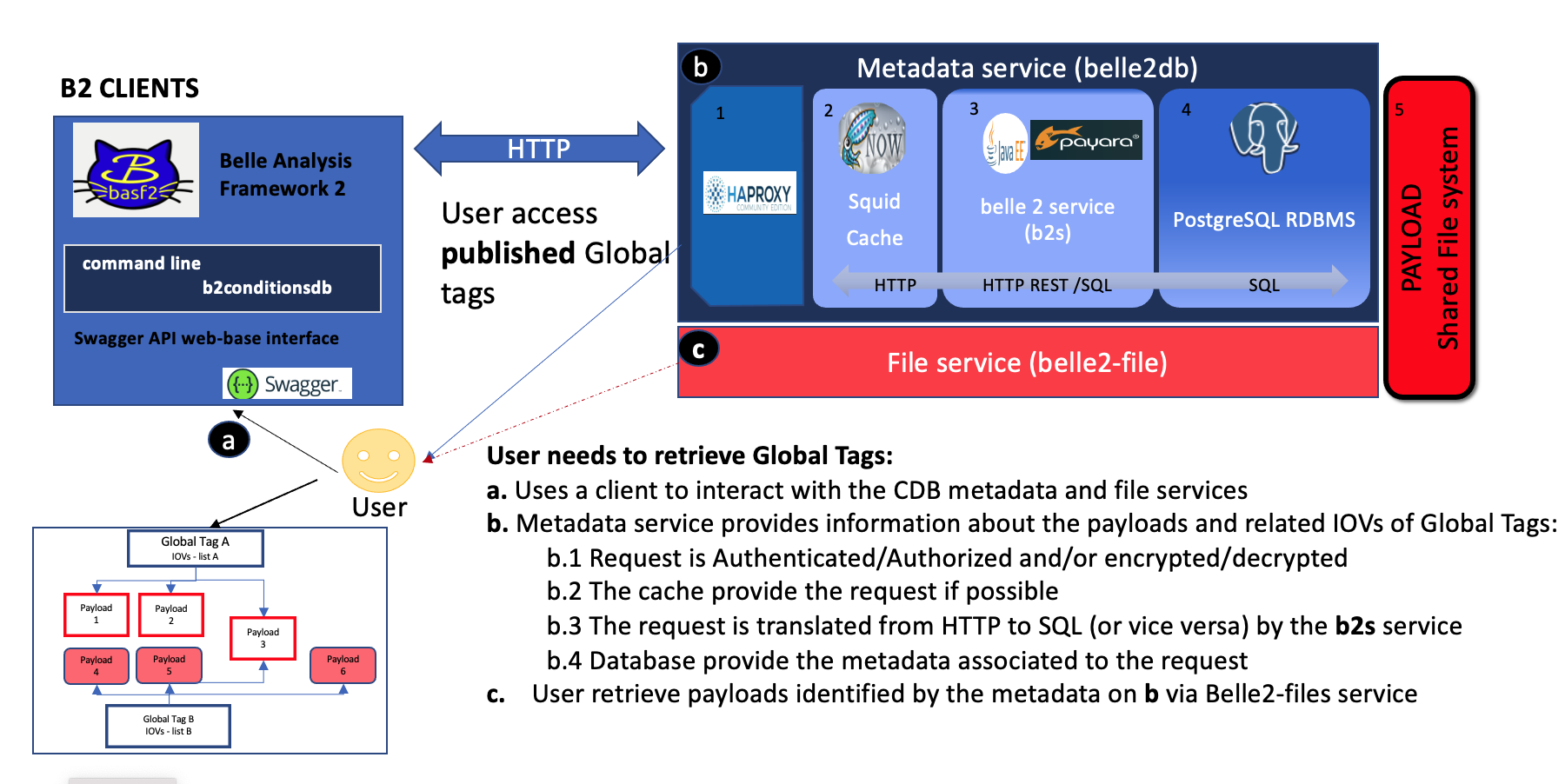

Belle II CDB general service data flow

B2CDB data flow

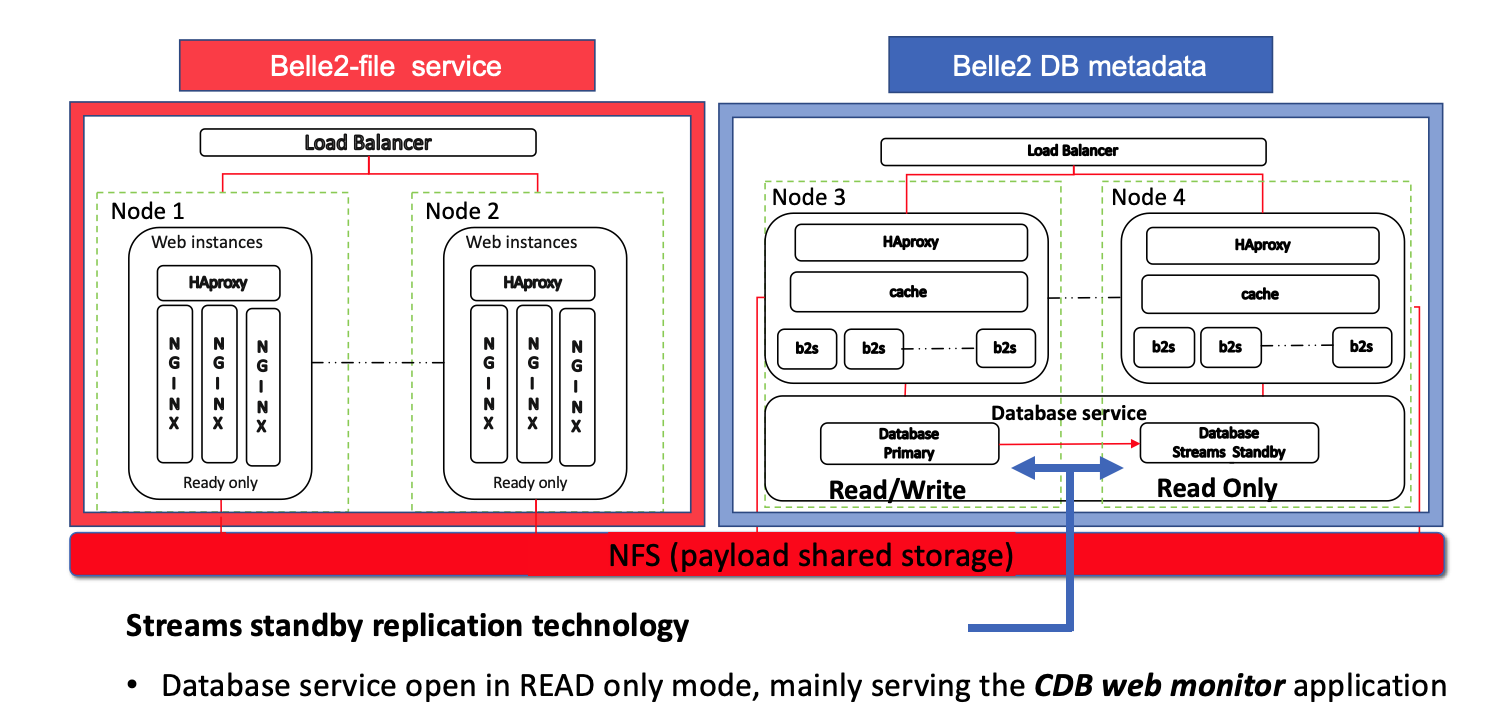

Belle II CDB server architecture (under the hood),

Orchestration of individual containerized components

B2 CDB architecture

Belle II CDB operational procedures

Operational procedures are available from the SCDF support team.

Belle II CDB code architecture

Belle II general documentation for B2S code follow this https://confluence.desy.de/display/BI/B2S+Technology+Overview (requires Belle II confluence credentials)
